Karst and caves of the Upper Ribeira State Opark (PETAR), southern
São Paulo State, Brazil
Ivo KARMANN & José Antônio FERRARI                                                                                                1-15

Copied from: http://www.unb.br/ig/sigep/sitio043/sitio043english.htm

Geological and Paleontological Sites of Brazil - 043 BrasilKarst and caves of the Upper Ribeira State Park (PETAR), southern São Paulo State. Brazil Data 18/01/2000 Ivo Karmann 1 José Antônio Ferrari 2 1-Departamento de Geologia Sedimentar e Ambiental Instituto de Geociências - Universidade de São Paulo Rua do lago 562, Cidade Universitária - 05508- 090 São Paulo – SP e-mail: ikarmann@usp.br 2-Instituto Geológico – Secretaria Estadual do Meio Ambiente – São Paulo (SMA-SP) Av. Miguel Stefano 3900 – 04301-903 São Paulo – SP e-mail: ferrari@igeologico.sp.gov.br © Karmann,I.; Ferrari,J.A. 2000. Karst and caves of the Upper Ribeira State Park (PETAR), southern São Paulo State. In: Schobbenhaus,C.; Campos,D.A.; Queiroz,E.T.; Winge,M.; Berbert-Born,M. (Edit.) Sítios Geológicos e Paleontológicos do Brasil. Published on Internet at the address http://www.unb.br/ig/sigep/sitio043/sitio043.htm (The above bibliographic reference of author copy rights is required for any use of this article in any media, being forbidden the use for any commercial purpose)



ABSTRACT

The Upper Ribeira State Park (PETAR- Parque Estadual Turistico do Alto Ribeira) is a conservation unit with an area of 35,102.8 há on the left margin of the upper reaches of the Ribeira river in southern São Paulo State. The karst here lies in the transition zone between the Atlantic Plateau and the Coastal Lowlands, and stands out for its steep hydraulic gradients, its important alogenic recharge and incised underground drainage with vadose canyons up to 60 m deep, where vertical caves or abysses and huge collapse halls are common. Polygonal karst with deep blind valleys and karst canyons occur at the surface, and this pattern distinguishes the Ribeira Valley karst from other Brazilian karst regions. Amongst the more than two hundred known caves, the Santana cave with 6.3 km of mapped passages is the most important. The carbonate rocks in the area belong to the Middle Proterozoic Lajeado Subgroup. The environmental importance of the area is due to the association between usually well-preserved tropical forest, exceptionally rugged relief, and cave systems whose unique underground scenery combines a wide variety of speleothem forms and Quaternary palaeontological sites.



INTRODUCTION

     5-7% of Brazilian territory is occupied by karst terrains (Karmann 1994). Of these, the carbonate belts of the Açungui and Itaiacoca Groups in southern and southeastern São Paulo State and Northeastern Paraná State stand out for their unique karst features and associated sedimentary deposits. PETAR, the State Tourist Park of the upper Ribeira, is underlain by metasediments of the Açungui Group, and represents a conservation unit which has important morphological variations in the hill section of the Ribeira river valley. The climate is humid sub-tropical with hills and valleys covered by dense forest popularily known as Mata Atlântica (Karmann op. cit.; Ferrari et al. 1999).

     This geological site is geomorphologically and speleologically exuberant, with polygonal karst, cones and karst canyons, deep river valleys and rocky escarpments with cave entrances, underground drainage systems with a wide speleomorphological variety, and Quaternary paleontological sites.

     PETAR is the northwesternmost of a zone of conservation areas which starts at the coast with the Cardoso Island State Park, continues through the Jacupiranga State Park, and ends with PETAR and the Intervales Parks, which are sited in the transition zone between the plateau and the Ribeira Lowlands.



LOCATION AND PHYSIOGRAPHY

Access

     PETAR is located in the South of São Paulo State in the Iporanga and Apiaí municipal areas. From São Paulo city, the main access routes are the SP 280 road passing through Apiaí, or the BR-116 (Regis Betencourt) highway passing through Jacupiranga and Iporanga.

Geomorphology

     PETAR lies on the southeastern flank of the Paranapiacaba hill range, with mountainous relief and altitude differences of up to 700 m . The area belongs to the Ribeira mountains (IPT 1981) and is a transition zone between the Atlantic Plateau, at 800-1,200 m in the northwest of the Park, and the Coastal Lowlands to the East and Southeast, with altitudes up to about 600m (Fig. 2).

     The Park is drained by the Betari, Iporanga and Pilões rivers (fig.1), whose sources lie at the edge of the Atlantic Plateau (locally known as the Guapiara Plateau) at between 900 and 1,100 m, and flow into the Ribeira river at about 70-80 m. Since the river basins drain the Ribeira mountains, the rivers have entrenched valleys and longitudinal profiles with medium or high gradients with locall waterfalls. The Betari river is a typical example, with high gradients and great erosive capacity which occupies closed V shaped valleys where it flows over non-carbonate rocks, and low gradients with wide U shaped valleys and aggraded flood plains where it flows over carbonate rocks, such as in the Lajeado Plateau.

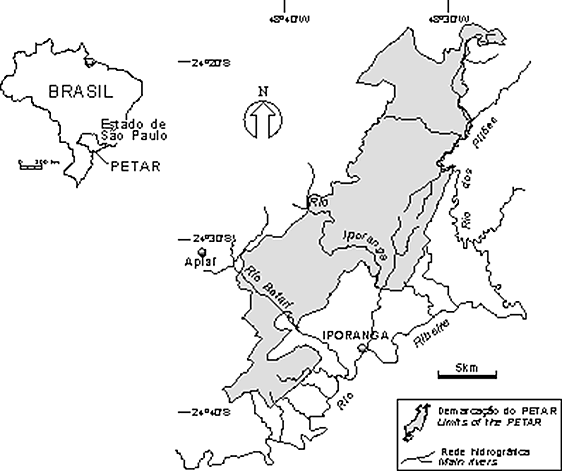

Figure 1 – Localization of the Upper Ribeira State Park (PETAR)

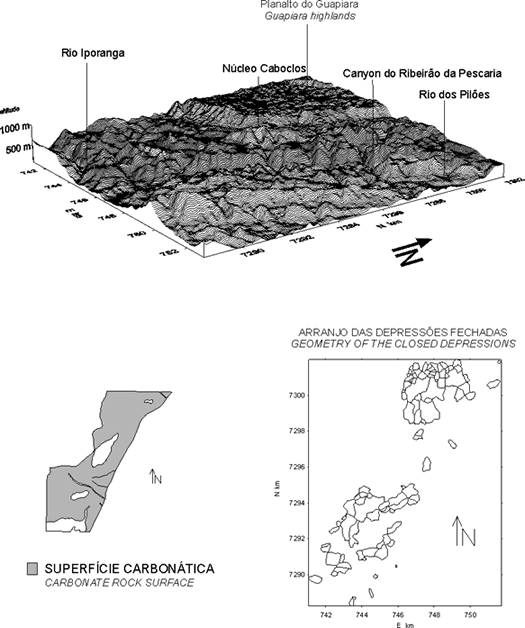

Figure 2 – Topographic compartimentation of the northern area of Petar. Modified from Ferrrai et. al. 1999



Climate and vegetation

     The area falls into a transitional climatic region between the hot climate of low latitudes and the mesothermic temperate climate of middle latitudes which is typical of the southern region of Brazil. NIMER (1977) classified the climate as warm and wet with no dry season. The mean annual rainfall for the period 1970-1996 is 1,963.3 mm, which falls mainly in the wetter season from October to March (1,281.5 mm). Mean annual temperatures usually lie between 20° C and 22° Cand annual temperature ranges are also usually small due to the proximity of the ocean.

     This climate allows the development of the Rain Forest (Alonso 1977) which is high and dense as a result of the variety of species, which belong to different biological forms and levels of occupation. The highest trees reach 25-30m. The large number of llianas, epiphytes, tree ferns and palm trees give to this forest a typically tropical aspect.



Geology

     The park lies in the Apiaí Fold Belt, underlain by metamorphic rocks of the volcano-sedimentary supracrustal sequence of the Açungui Group, which is divided into several tectonic blocks separated by NE-SW transcurrent shear zones (fig. 3; Campanha 1991). PETAR occupies part of the Lajeado tectonic block between the Quarenta Oitavas lineament to the North and the Figueira Fault at the South. This block is composed of the low metamorphic grade Lajeado Subgroup which is composed of pelitic, psammitic and carbonate units ovelain by a gabbro intrusion. The carbonate rocks are metacalcarenites and impure calcitic and dolomitic metacalcilutites of the Bairro da Serra Formation; metacalcarenites and laminated metacalcilutites of the Mina de Furnas Formation; and dolomitic metacalcarenites of the Passa Vinte Formation. The first occupies the largest area, both in PETAR and in the Lajeado block (fig 3).

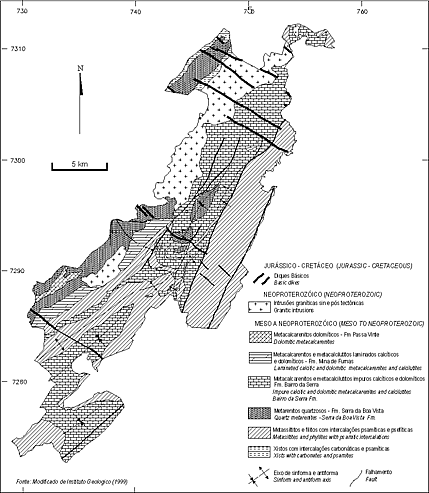

Fig 3.Geologic map of the Petar, adapted from Campanha 1991 and IG 1999



HISTORICAL ASPECTS AND PRESERVATION

     The Betari river valley is a route between the Ribeira lowlands and the Plateau which has been in use since pre-colonial times according to the archeological findings of de Blasis and Robrahn (1998). In historic times, the route was also used by explorers interested in finding mineral resources on the plateau.

     Scientific study of the Upper Ribeira karst was started at the beginning of this century by the naturalist Richard Krone, who investigated a number of the caves in a search for paleontological, archaeological and ethnological material. The results of his studies were published in the volume entitled "Exploração do Rio Ribeira de Iguape", published by the Geographic and Geological Commission in 1914. Later, Krone (1950) recounted the discovery of 41 caves, the finding of bones of the Pleistocene megafauna, and called attention to the natural beauty and tourist potential of the region. As a result of the 1908 expedition, a first attempt for conservation of some of the caves in the area was taken with the disappropriation of areas around the Pescaria, Monjolinho, Arataca and Chapéu caves in 1910.

     Systematic exploration and mapping of the caves was started by groups of the Brazilian Caving Society (Sociedade Brasileira de Espeleologia) and technicians of the Geographical and Geological Institute (IGG; now the Geological Institute of theState Environmental Agency – Secretaria Estadual do Meio Ambiente). The publication "Limestone caverns – Speleological studies in the Upper Ribeira river valley" of Guimarães and Lebret (1966) is an outstanding contribution from this early phase.

     The creation of a conservation unit in order to protect the caves and surrounding forest dates from 1957 when the mining engineer José Epitácio Passos Guimnarães of the IGG presented a proposal for the creation of a state park in the region. This came out in 1958 with the promulgation of State Decree no 32,283 which created the juridical entity PETAR with an area of 35,712 ha. State Decree no. 41,626 of 1963 placed PETAR under the responsibility of the State Forest Service (now the São Paulo State Forest Institute – IF/SP). As a result of mining interests in the area, PETAR was reduced by 609.17 ha to 35,102.83 ha in 1969 by Decree no. 14,321.

     A proposal to register PETAR and surrounding areas with scenic or scientific interest was forwarded to the National Council for Preservation of the Natural, Architectural and Archeological Sites (CONDEPHAAT) in 1969 with the intention of enlarge the protected speleological area to include the source regions of underground rivers which flow through the caves (Sanchez 1984). This was achieved with the registering of the entire Serra do Mar (including the Serra de Paranapiacaba) as a Protected Environmental Area (APA), forming the Serra do Mar APA.

     The implantation of this park delayed until 1987-8, when the IF/SP demarcated the park boundaries and started to employ the State Forestry Police to control illegal deforestation by lumbering and harvesting of palm shoots.

     The demarcation of PETAR was an important step towards the preservation of the natural heritage. Nevertheless, the catchment area and part of the main caves of the Pérolas – Santana and Areais cave systems continue outside the park limits, and although these areas lie within the Serra do Mar APA, this does not guarantee eficient protection. Some caves lie outside the park and other protected areas around PETAR.



THE KARST LANDSCAPE



Karst topography

     The general pattern of the carbonate belt of the Lajeado Subgroup typically has the karst surface up to 700 m lower than surrounding crests of pelitic, psammitic or granitic rocks (fig 2 and 4). This leads to the formation of mixed recharge in the karst areas, with and important allogenic injection added to the authigenic recharge.

     Using groups of relief features, Karmann (1994) defined the following morphological divisions in the Lajeado and Furnas-Santana areas of the southwestern sector of PETAR in the Betari river basin:
The Contact zone is defined by insurgences (sinkholes) of allogenic waters which together form a belt along the contact zone between limestone and other rocks. Typical features of this zone are blind valleys, contact poljes and sinkholes which absorb run-off from the insoluble rocks around the limestones. The zone is usually marked by assymetric valleys in which the slope over the the limestones is often a rocky escarpment. Cave entrances with breakdown halls are often associated to paleo sinkholes which are today higher up above the rivers (foto 1). Blind valleys have drops of 260-580 m.

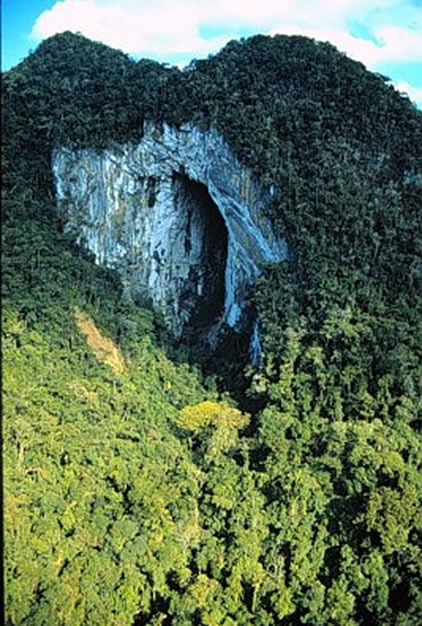

PHOTO 1- Aereal view of the blind valley of the Casa de Pedra cave. Photo from João Allievi.

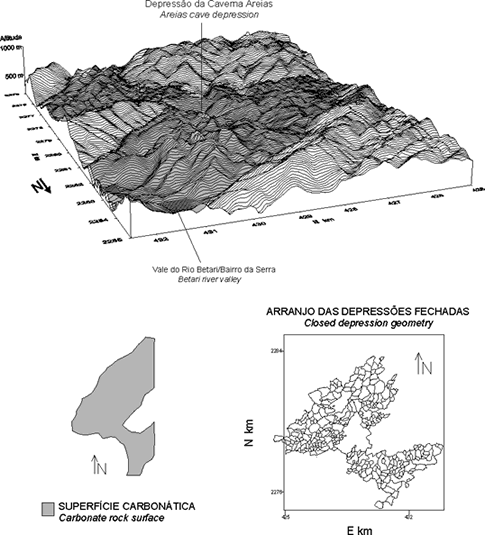

Fig 4.Topographic compartimentation of the southeastern area of the Petar.



     The fluviokarstic zone corresponds to that part of the carbonate rock surface where run-off predominates, with rivers developed locally together with karst features. Where the main rivers cross the carbonate rocks, such as where the Betari river crosses the Lajeado carbonatic body at the Bairro da Serra, a morphological situation is created in which fluvial features predominate over karstic features. In these cases the river valley is wide, with a well-developed aggradation plain and a meandering river channel. Karst is restricted to the valley slopes which have resurgences and cave entraces. The widths of these valleys range between 60 and 1,100 m, in contrast to valley widths of 20-40 m where the river flows over metapelites.

     The polygonal karst zone is the typical landscape developed over carbonate rocks where the authogenic surface run-off is completely absorbed by sinkholes located at the bottom of depressions, and the watersheds have a polygonal planform. (fig 5). The term polygonal depression is used in the sense defined by Williams (1971) and Day (1976). In general this morpghological unit has a very undulating surface with crests at 600-700 m and closed valley bottoms at 420-550 m, resulting in a relief of about 130 m. In the northern part of PETAR a polygonal depression with a relief of 630 m was discovered which represents one of the deepest in the carbonate belt of the Lajeado Subgroup (Ferrari et al. 1999). One of the most representative areas of polygonal karst occurs over the Lajeado body in the Southwest of PETAR where morphometric analysis at the 1:25,000 scale led to the identification of simple and compound depressions. Simple depressions have areas between 0.003 and 0.05 km2 and only one sink-hole. Compound depressions are usually larger (between 0.05 and 0.8 km2), and have more irregular outlines. The internal drainage system is more complex, up to third order, with many sink-holes which interrupt the drainage channels but lack watersheds at the analysed scale. The depths of the compound depressions usually vary between 10 and 80 m with one exceptional example associated with the subsidence dolina which leads to the entrance to the Areias caves I and II having a depth of 130 m. The simple depressions are similar to Sweeting’s (1972) cockpits in Jamaican karst, while the compound depressions are uvalas since they have many insurgence points. At the lowest points of the poligonal depressions three types of dolines can occur: solution dolinas with diffuse infiltration along widened fractures filled by residual material; solution dolinas with infiltration concentrated along open vertical conduits; and collapse dolinas with a direct connection to underground rivers and caves, which were formed by the collapse of cave roofs. The second type of dolina gives acess to most of the vertical caves or abysms which are very common in the region.

     Karmann’s morphometric analysis (op. cit.) also showed that the depression density is between 7.7 and 13 depressions per km2, typical of tropical karst, such as those of Jamaica, Porto Rico (Day 1976) and New Guinea (Williams 1972).

     The sectors with best-developed polygonal patterns are the surface expression of the main underground routes of cave systems. In some cases it is still possible to identify segments of the paleo fluvial valleys which were present before the installation of the polygonal basins with centripetal drainage.

     The morphological features in the north-eastern part of PETAR, in the Iporanga and Pilões river basins, are very similar to those in the Betari basin (Ferrari et al. 1999) with the exception of the karst canyons, present in the Northeast and absent from the southwestern area. An example of this feature is the Temimina river valley associated with the homonimous cave. The sources lie in the Guapiara plateau on the Três Corregos granite. Where the stream crosses the limestones it runs through a steep-sided valley until it reaches the sinkhole at the cave. The sinkhole cannot be penetrated due to fallen blocks.



Cave systems

     The scenic features of PETAR which are most sought after by the public are the caves, with around 200 examples in the park and its surrounding areas. The longest cave is Santana with 6,300 m, while the greatest drop of 297 m is found along the Água Suja cave.

     Most caves represent accessible segments of groundwater circulation routes, and thus form integrated underground drainage systems. The general pattern of these systems is convergent, in which water collected from many sinkholes is drained to a few resurgences. The ratio between alogenic sinkholes and resurgences in the southwestern part of PETAR is between 8 and 12, demonstrating that the karstic circulation has few branches (Karmann 1994). The main accesses to the underground rivers are the sinkholes or the resurgences. 2,500 m of the 5,970 m between the sink-hole and the resurgence of the Pérolas-Santana cave system are acessible, while the rest is almost exclusively in the saturated zone according to Karmann (1994). The underground channels are generally oriented to NE-SW and have resurgences along the main rivers (Betari, Pilões and Pescaria) which cut the conduit systems representing their base levels.

     The systems have high and very variable hydraulic gradients with a mean of 65.6m/km and a variation coefficient of 86.4% for twelve measurements. Extreme examples are the Ouro Grosso cave, with 221m/km, and the Água Suja cave, with 129m/km.

     The planimetric cave patterns vary between angular and rectilinear to curved and sinuous. In the Santana and Ouro Grosso caves long straight stretches with sharp angular inflections predominate (fig 7) while the curved sinuous pattern predominates in the Areias cave. The planform is a direct function of the dip of the rock beds, which is the main control of the conduit shape: the steeper the dip (45-80° ), the straighter and more angular the original cave conduit pattern, excluding the collapse halls (Karmann, op. cit.).

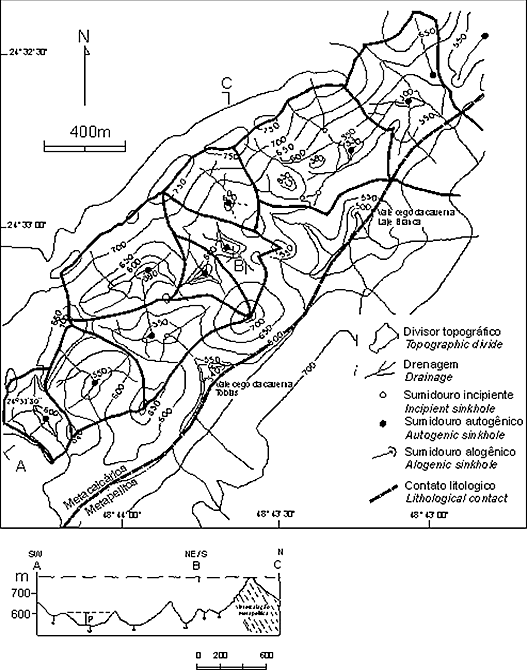

Fig 5. Distribuition of poligonal closed depressions over the carbonatic belt of the Perolas-Santana cave system. Adapted from Karmann 1994.

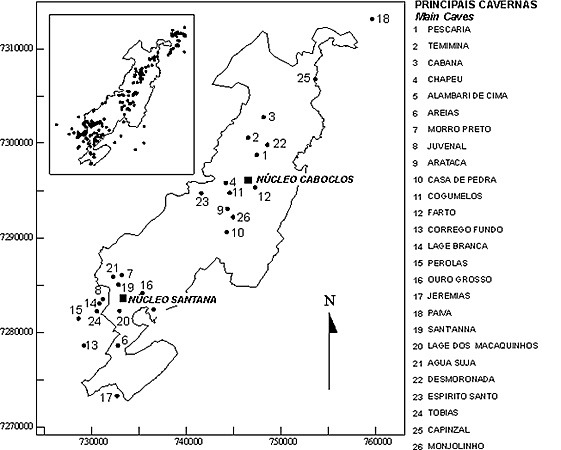

Fig 6. Localization of the main caves with respect to the perimeter of the Petar.
In the upper left, localization of caves in the vicinity of the park.



     In transversal sections, vadose incisions (canyons) predominate over phreatic conduits (fig. 8). The underground canyons have rectilinear or staggered sections and meandering longitudinal sections, with active subterranean rivers and heights in the range of 10-60m. The phreatic initiation zones are rarely preserved or accessible and are mostly seen along smaller tributaries of the main courses in higher levels above the present river level. Subterranean collapse scenery is common. The largest collapse halls are in the Água Suja and Laje Branca caves, with 2.8 x 105 and 1.7 x 105 m3, respectively.

     Another notable morphological feature of the Upper Ribeira caves are the vertical conduits, generically called abysms. They were formed by capture of the surface rivers by the carbonate rocks in which the subterranean drainage systems were already well-developed. The abysms in the Ouro Grosso, Casa de Pedra and Água Suja caves are spectacular examples. In the last cave, the Vargem Grande abysm, (popularly known as the Foreign Debt!) is a vertical conduit which narrows upwards, and has a height of 95m (fig 9). It is the connection between two cave levels with the Vargem Grande cave in the upper level, and the Água Suja cave in the lower.

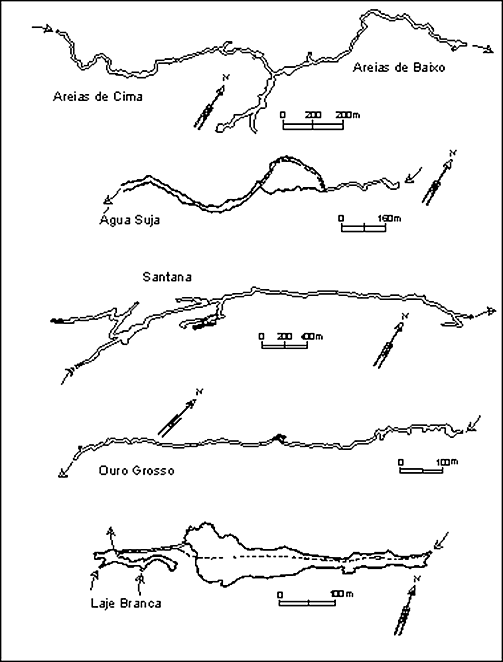

Fig 7. Samples of planimetric cave patterns of the Petar. Arrows indicate the direction of water flow. Adapted from Karmann 1994.

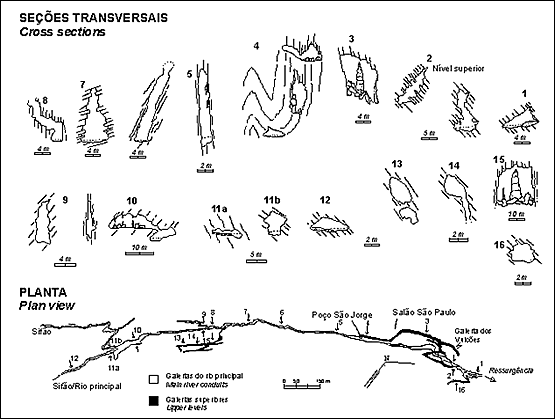

Fig 8. Plan view and transversal sections of the Santana cave. Adapted from Karmann 1994.

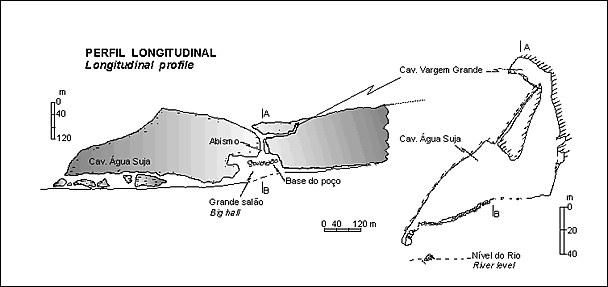

Fig 9. Longitudinal profile of the Agua Suja cave. On the right, transversal section of the Vargem Grande abysm (the "Foreign Debt abysm"). Adapted from Batistucci 1988.



Ages of the caves

     Using the method of the uranium series (234U/230Th) dating applied to secondary calcite deposited on subterranean river sediments of the Santana, Pescaria and Alambari caves, Karmann (1994) estimated that the mean rate of subterranean fluvial incision was 0.0042cm/y (4.2cm/ky) over the last 240,000 y. Using this value to gauge the incision of the subterranean canyons, it was estimated that the caves in the region have been developing for approximately 1.7 My, while a minimum age for the Pérolas Santana cave system would be 2 My. This age includes the time necessary for the initiation of phreatic conduits and the subsequent incision of the canyons by underground rivers.

Speleothems

     The PETAR caves stand out for the great diversity of shapes of the speleothems. In decreasing order of abundance calcite, aragonite, hydromagnesite, gypsum, hydroxyapatite and leucophosphite speleothems were identified (Barbieri 1993).
Calcite occurs in stalactites, stalagmites, curtains, helictites, heligmites, rimstone dams, several types of flowstones, shields, cave pearls (ooliths and pisoliths), cones, dogs’ teeth (calcite spar), rafts, and as one of the components of moon milk deposits. Stalactites up to 15 m high with bases 3 m in diameter are notable, and they have secondary growths forming piles of plates; tube-like stalactites ("straws") are up to 2 m long; helictites and heligmites are up to 1 m long and have widths of 2 cm; decimetric helictites form tuffs; cones associated with travertine dams have centimetric euhedral calcite crystals (dog tooth); curtains are decametric, while shields reach 3m in diameter. Straw stalactites and helictites are usually composed of monocrystals of hyaline or white calcite a few decimetres long.



Foto 2



     Aragonite forms stalactites, stalagmites, spathites and flowers (anthodites). Its precipitation occurs when the molar Mg/Ca ratios in slowly-percolating waters, derived from dolomitic strata within the dominantly calcitic limestones, exceeds 0.6. Calcite and aragonite frequently occur together, for example, where small secondary anthodite growths of aragonite cover stalactites.

     Hydromagnesite, which together with calcite forms moon milk, has been identified at the tips of aragonite needles, in anthodites where it forms globules of millimetric tuffs looking like cottonets, and as coatings over many types of speleothems, when is has a dull, pasty appearance when wet (Barbieri 1993).

     The only sulphate mineral so far identified in the PETAR caves is gypsum. It forms small tuffs with undulating white fibrous crystals a few mm to 1 cm long, or in the form of millimetre-thick crusts on the surfaces of altered limestone in the dry sections of upper galleries.

     The occurrence of phosphates identified by Barbieri (1993) is a mineralogical curiosity. Leucophosphite and hydroxyapatite form friable brownish or greenish crusts from a few mm to a few cm thick covering rock surfaces and speleothems.



PALEONTOLOGICAL SITES

     In the Betari river basin, the Fossil, Juvenal and Ponta de Flecha abysms are important sites for fossils of the Pleistocene - Holocene transition. In the first and last abysms excavations in clastic sediments were undertaken using archeological techniques. The sedimentas are poorly-sorted and immature, consisting of fragments from cobbles to clay-size. They contain a large quantity of organic matter and therefore have a dark grey colour, and some levels have carbonate cement. They are usually reworked by recurrent floods which destroy the stratigraphy. They accumulated at different levels along vertical staggered conduits or in horizontal conduits. Thicknesses are very variable but rarely achieve a few m. The thickest excavated deposit was 1.3 m thick.

     Amongst the extinct forms identified are teeth, skull fragments and different bones belonging to Toxodon platensis. A large quantity of fossil bones found in the abysms are attributed to the order Edentata, such as Eremotherium lundi, Megatherium sp., (giant sloths) Nothrotherium sp. and Scelidotherium cuvieri. The giant armadillo Gliptodon calvipes was found in the Fossil abysm (Barros Barreto et al. 1982). A interesting point is the possible coexistence of megafauna species such as Toxodons and Megatheriums with pre-colonial man in the Upper Ribeira, as shown by the presence of bones and teeth of the animals with dismemberment and meat-carving marks identified in material from the Ponta de Flecha abysm (Barros Barreto et al., op. cit.)



PARK ORGANIZATION AND VISITING

     PETAR is divided into two main areas for visits, the Santana Nucleus in the southern part, and the Caboclos Nucleus in the northern part. Tourist routes starting from that points have been planned, with escorts of local guides who are employees of the park.

     The importance of PETAR in the ecotourism scene in southeastern Brazil is shown by the number of visitors received during the period between 1996 and 1998, which varied between 24,831 and 28,859 per year (Allegrini 1999).

     General information on the park can be obtained from the IF/SEMA/SP, or at the Internet site www.iflorestsp.br



Bibliography

Alonso, M. T. A -1977- Geografia do Brasil - Região Sudeste. IBGE - Rio de Janeiro. 667 p.

Allegrini, M. –1999- Documentos básicos para o plano de manejo do PETAR. Instituto Florestal, SEMA-SP.

Barbieri, A.J.-1993- Depósitos minerais secundários das cavernas Santana, Pérolas e Lage Branca, município de Iporanga, São Paulo. São Paulo, 96 p. (Dissertação de Mestrado - Instituto de Geociências/USP).

Barros Barreto, C.N.G.; De Blasis, P.D.; Dias Neto, C.M.; Karmann, I.; Lino, C.F.; &. Robrahn, E.M -1982 - Abismo Ponta de Flecha: um projeto arqueológico, paleontológico e geológico no médio curso de Ribeira de Iguape, São Paulo. Revista de Pré-História, vol. 3(4): 195-215, USP.

Campanha, G.-1991- Tectônica proterozóica no Alto e Médio Vale do Ribeira, Estados de São Paulo e Paraná. São Paulo, 296p. (Tese de Doutoramento - Instituto de Geociências/ USP).

Day, M.-1976- The morphology and hydrology of some Jamaican karst depressions. Earth-Surface Processes 1(2): 111-129.

De Blasis, P. e Robrahn, E.M. -1998 - Investigações arqueológicas no Médio/Baixo Vale do Ribeira de Iguape, SP. Revista do MAE, v. 8 :

Ferrari, J.A.; Hiruma, S.T. e Karmann, I. –1999- Caracterização morfométrica da superfície cárstica do núcleo Caboclos (PETAR). Revista do Instituto Geológico, 13(1-2): ......

INSTITUTO DE PESQUISAS TECNOLÓGICAS DO ESTADO DE SÃO PAULO- IPT-1981a- Mapa geomorfológico do Estado de São Paulo, escala 1:1.000.000. São Paulo, Secretaria da Indústria, Comércio, Ciência e Tecnologia do Estado de São Paulo e IPT (Publicação IPT no 1183).

Instituto GeolÓgico -1999- Contribuição ao conhecimento do meio físico no Parque Estadual Turístico do Alto Ribeira - PETAR (Apiaí e Iporanga, SP). Coordenadoria de Informações Técnicas, Documentação e Pesquisa Ambiental, Secretaria de Estado do Meio Ambiente - São Paulo. 241 p.

Karmann, I. -1994- Evolução e dinâmica atual do sistema cárstico do alto Vale do rio Ribeira de Iguape, sudeste do estado de São Paulo. Tese de doutoramento IGc-USP. 241 pp.

Krone, R.-1914- Informações ethnographicas do valle do rio Ribeira de Iguape. In: COMMISSÃO GEOGRAPHICA E GEOLÓGICA DO ESTADO DE SÃO PAULO (ed.) Exploração do Rio Ribeira de Iguape. 2a edição, São Paulo, p. 24-34.

Krone, R.-1950- As grutas calcárias do vale do rio Ribeira de Iguape. O I.G.G., 8(3): 248-297 (transcrição do vol. VX, Arquivos do Museu Nacional, 1909, Rio de Janeiro).

Le Bret, M.-1966- Estudos espeleológicos no vale do Alto Ribeira. Boletim I.G.G., 47: 71-123, São Paulo.

Nimer, E. –1977- Geografia do Brasil - Região Sudeste. IBGE - Rio de Janeiro. 667 p.

Sánchez, L.E.-1984- Cavernas e paisagem cárstica do Alto Vale do Ribeira/SP: uma proposta de tombamento. Espeleo-Tema, 14: 9-21.

Sweeting, M.M.-1972- Karst landforms. New York, Mcmillan, 362p.

Williams, P.W.-1971- Illustrating morphometric analysis of karst with examples from New Guinea. Zeitschrift für Geomorphologie Neue Folge, 15: 40-61
